How to tell which stage of the frame is making your app janky

English · Русский

Two runs of the same screen, same device, same scripted scroll. One of them has a rendering bug in it. By jank percentage, the share of frames that finished late, they are indistinguishable.

The screen is a list from the sample app of FrameHUD, a debug overlay that shows the per-frame phase breakdown Android reports. Three versions of it: as written, with six milliseconds of Thread.sleep inside a drawBehind, and with sixty translucent layers drawn over every row. Each column averages two scripted 36-second scrolls on a Galaxy S25 Ultra at 120 Hz.

  clean Thread.sleep(6) in drawBehind 60 translucent layers
jank 3.8% 6.2% 4.3%
frame p95 12.3 ms 16.8 ms 15.6 ms
TOTAL avg 5.81 ms 6.67 ms 9.03 ms
draw avg 1.00 ms 1.48 ms 1.05 ms
command avg 0.43 ms 0.43 ms 0.99 ms
gpu avg 1.67 ms 1.66 ms 4.32 ms
lost per run 0.73 s 1.17 s 0.69 s
bottleneck stage CPU CPU GPU

The right-hand column first. Jank 4.3% against a clean run’s 3.8% — 0.44 of a point, about what two runs of the same overdraw screen differ by. Lost time lower than the clean run. On this phone that screen ships.

The phases disagree. Averaged over the run a frame costs 55% more than a clean one, command more than doubled, and the GPU went from 1.67 ms to 4.32, two and a half times over, enough on its own to move the bottleneck stage from CPU to GPU. Whatever headroom made the top-line numbers look fine has been spent. Put that screen on a weaker GPU and it is the one that stutters.

The middle column is a different bug: half a millisecond added to draw, command and gpu untouched, 1.17 s of lost time. Jank noticed that one. It still would not have said which of the two screens to open, or which file to open in it.

Both bugs are mine, load switches in the sample app, so the method is spelled out rather than summarised. Android 16, display pinned to 120 Hz, the same scripted fling every time, about 36 seconds and ~3300 frames per run, session exported after each one. No run reported a confidence issue. The two clean runs came out 0.06 jank points apart and the two overdraw runs 0.37; the two sleep runs 1.3, already wider than the gap between the clean column and the overdraw one. What the table is evidence for is narrower than “the library works”: a per-frame phase breakdown separates two cases that a frame counter reports as the same.

Where the numbers come from

All of them from FrameMetrics, which Android has reported per frame since API 24: input handling, animation callbacks, measure and layout, draw recording, sync to the render thread, command issue, buffer swap, and on API 31+ the GPU duration. The deadline comes from the system DEADLINE field on API 31+ rather than a hardcoded 16.7, and it belongs to the frame rather than to the display: in the incident windows these runs kept, this phone reported 8.3 ms for a fifth of the frames, 16.7 for seven in ten and 25.0 or more for the rest, while the refresh rate never left 120 Hz. Judge every frame against one number derived from the refresh rate and you disagree with the system about which frames were late.

Per-frame deadlines over thirty frames, against a fixed 16.7 ms budget

FrameHUD puts that breakdown on top of the running app and keeps statistics from it.

debugImplementation("com.timkrest:framehud:0.18.1")

Nothing to call. A ContentProvider brings the panel up at startup and it follows whichever activity has focus. minSdk 24, Apache 2.0, github.com/timkrest/FrameHUD.

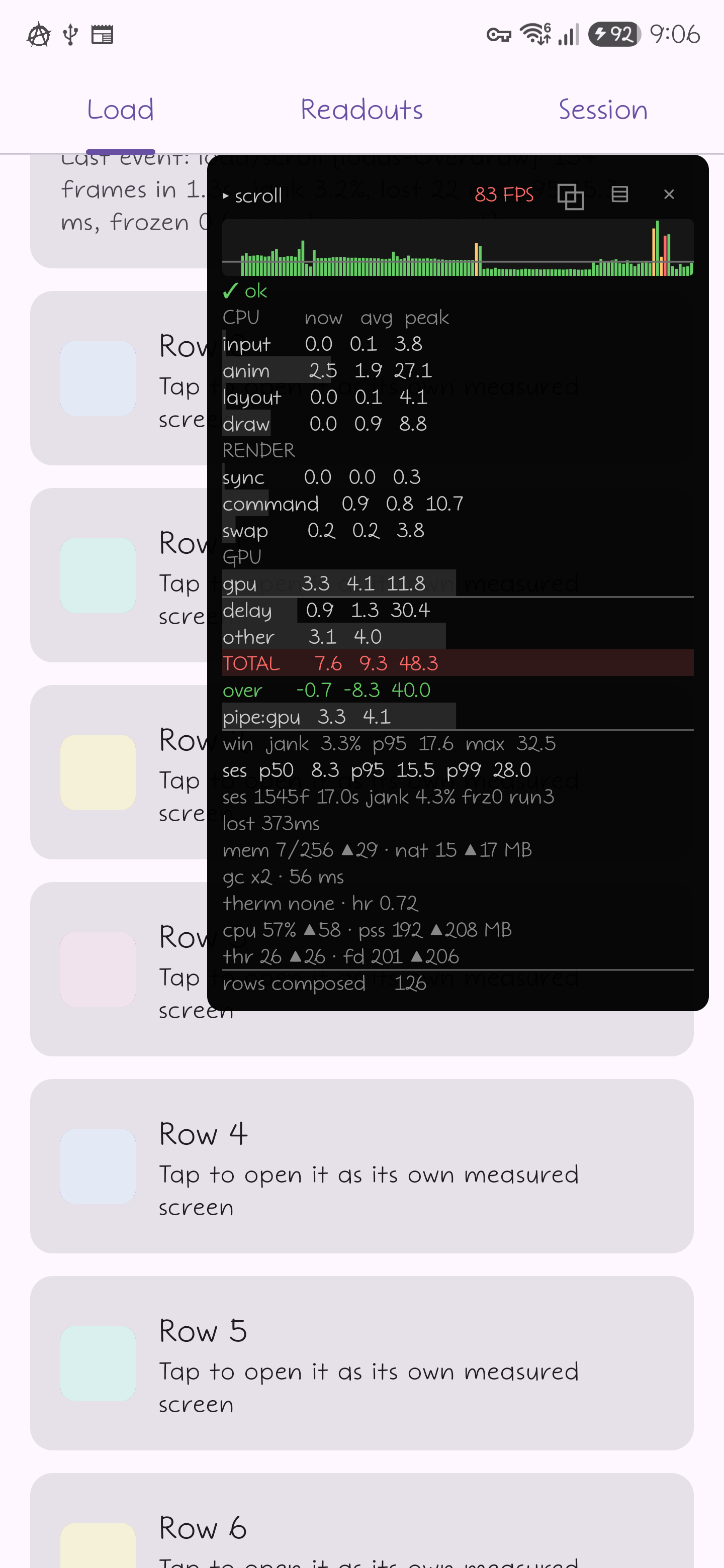

The panel over a scrolling list on an S25 Ultra

The panel

The top of that panel as text, mid-fling with the sixty layers on. Memory, GC, thermal and process rows follow below the last one here:

▸ scroll              83 FPS
✓ ok
CPU        now   avg  peak
input      0.0   0.1   3.8
anim       2.5   1.9  27.1
layout     0.0   0.1   4.1
draw       0.0   0.9   8.8
RENDER
sync       0.0   0.0   0.3
command    0.9   0.8  10.7
swap       0.2   0.2   3.8
GPU
gpu        3.3   4.1  11.8
delay      0.9   1.3  30.4
TOTAL      7.6   9.3  48.3
over      -0.7  -8.3  40.0
pipe:gpu   3.3   4.1
win  jank  3.3%  p95  17.6  max  32.5
lost 373ms

Three columns: the current frame, the average over the last 120, the peak since the last reset. now moves too fast to read; avg is the one you read, and peak answers whether there was a bad frame at all once the average has recovered.

The verdict line says ✓ ok, and it is right: jank 3.3%, and the average frame finished 8.3 ms inside its deadline. Two rows lower, gpu averages 4.1 ms and pipe:gpu names the GPU as the longest of the three stages — on a screen whose main-thread rows are all under a millisecond.

over is a frame’s TOTAL minus that frame’s own deadline, so negative is headroom. It also explains the pair of numbers that look like they should subtract and don’t: TOTAL averages 9.3 ms and over averages -8.3, because the frames behind those two averages were not all judged against the same 8.3 ms. lost adds up how far the late frames went past their deadlines: a jank percentage counts an 18 ms frame and a 300 ms frame identically, lost time separates a stutter from a freeze.

TOTAL took me a while to stop misreading. The phases are not sequential, because the main thread is already working on the next frame while the render thread finishes this one. The sum is not what the frame cost, and under sustained load the frame rate is bounded by the longest stage rather than the total. Hence pipe:cpu|rt|gpu. Read TOTAL as a cost and you will optimise a stage that had headroom.

The panel draws in a window of its own, so its own layout and draw stay out of the app’s frames. Every row is documented separately.

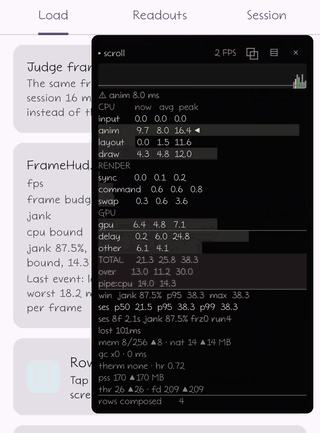

The panel updating during a scroll

Incidents

A jank burst or a frozen frame keeps the frames around itself — sixty before the trigger, thirty after — plus the memory, thermal, process and counter readings from that moment. One from the sleep run:

jankBurst WARNING · worst frame 26.5 ms · budget 8.3 ms · cause: CPU stage, 3.5 ms avg
screen load · mark scroll · loads="Block main thread"
90 frames kept, 60 of them from before the trigger · seen 15 times
heap 19/256 MB · gc x2, 41 ms · thermal none, headroom 0.72 · rows composed 160

rows composed is a counter the app registered itself, and mark scroll is the app naming the interaction these frames belong to. Neither comes from FrameMetrics, and without them the report can only say that a bad second happened somewhere.

seen 15 times is fifteen separate bursts that blamed the same stage on the same screen under the same mark, collapsed into one incident keeping the worst window. The overdraw run produced its own incident, blaming the GPU stage instead.

When the main thread has not delivered a frame for 300 ms, a background thread samples its stack: immediately, then after 100 ms, then at a pause doubling to 800 ms. The backoff is not politeness. Each sample stops the thread at a safepoint, and a stack taken from a thread that has not moved repeats the one before it.

Nothing in the sample used to hold the main thread that long, so I added a switch that does: 900 ms of Thread.sleep on the main thread, every five seconds. What it leaves behind:

frozenFrames · screen row/{index} · loads="Freeze"
90 frames kept, 87 of them from before the trigger · seen 4 times
worst frame 922 ms · heap 20/256 MB · gc x1, 34 ms · thermal none, headroom 0.72
main thread blocked 1007 ms · 3 stacks
  java.lang.Thread.sleep(Native Method)
  com.timkrest.framehud.sample.load.FreezeKt.freezeMainThread(Freeze.kt:21)
  com.timkrest.framehud.sample.load.FreezeKt$Freeze$1$1.invokeSuspend(Freeze.kt:15)

Three stacks out of a one-second block, all three naming the same line — which is what the backoff is there to stop paying for. 87 frames before the trigger and 3 after, because a frozen screen draws almost nothing afterwards and the window closes on its timeout instead of on frames.

That run is also the argument for the next section. Every freeze run came back marked refreshRateChanged, having seen both 60 and 120 Hz. My guess is the panel dropped its rate while the app was not feeding it and picked it up again afterwards, but I never watched that happen. Either way the mark taints the jank percentage, the lost time and the longest streak, and the run that shows the stack best is a run no threshold should be allowed to score.

Thresholds that survive a second device

Fixed thresholds were the first thing I shipped. They held on one phone and flapped on the other: same commit, same test, different verdict. A threshold is a claim about a device, and I had been writing it as a claim about the code.

So a threshold can instead be relative to a baseline: one averaged number per interval, kept in a file next to the reports, which CI pulls after a run and pushes back before the next. A run is compared with earlier runs on the same device and the same Android version; a baseline from another device comes back inconclusive rather than pass or fail.

@get:Rule val noJank = DetectJankAfterTestSuccess(JankThresholds(maxJankPercent = 2f))

The gate is also allowed to say it doesn’t know, which matters more than the baseline does. With only pass and fail available, a bad measurement still has to be called one of them, and it gets called a pass. Dropped FrameMetrics reports, a listener of your own holding the metrics thread, throttling, power saving, a low battery, a refresh-rate change mid-run, an emulator, too short a sample: each taints specific figures, and a threshold reading a tainted figure returns inconclusive instead of green. An emulator only puts the render-thread and GPU phases in doubt, while the main thread and the jank percentage are measured honestly there, and those are what the gate usually reads.

Sessions export as JSON and as a self-contained HTML report into the app’s external files directory, so CI collects them with adb pull and no root. The same run drives over adb without a rebuild: screens, marks, export, baseline. That is what a release-signed QA flavour buys — R8 has run, and the timings are the ones a user’s device will get. The guide has the commands.

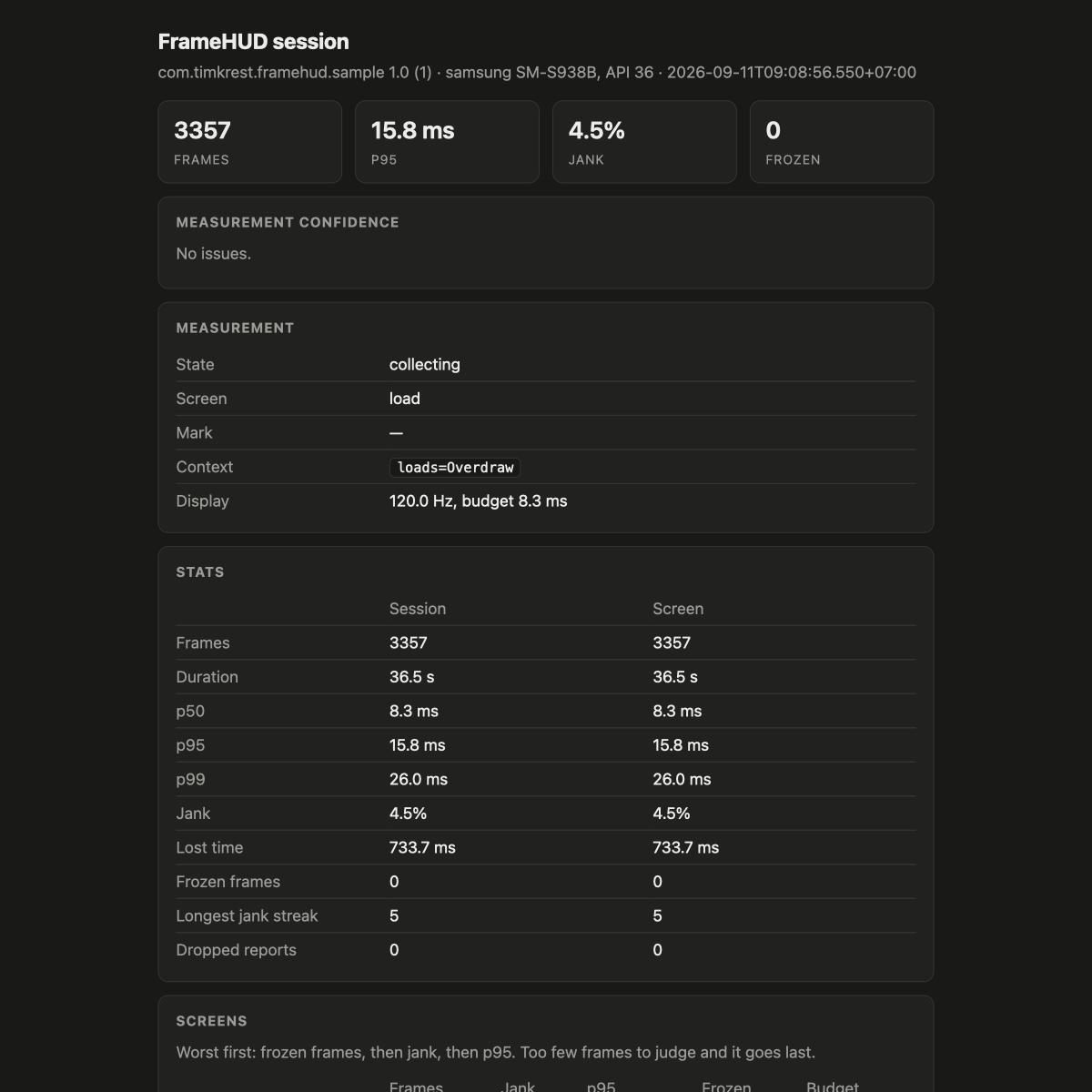

The HTML session report

What it costs

Collection runs on its own thread at background priority and yields to the app’s threads under load. Thermal status and battery are read once a second rather than per frame, because those are Binder calls into system_server. PSS and descriptor counts are sampled every five seconds on a separate thread, because reading PSS walks every mapping of the process. The panel is a window redrawn no more often than every 400 ms by default, and framehud-metrics is the same collection without it: no window, no overlay permission, everything readable from the app as StateFlows.

I have not measured the total overhead honestly, which would take the same scripted run with the library in and with it removed, comparing process CPU time from a trace. Until that number exists, read the paragraph above as a description of where the cost is, not a claim about its size.

Release builds get nothing. debugImplementation keeps the panel, its provider and the SYSTEM_ALERT_WINDOW out. The one line a release build can take is framehud-noop, a mirror of the API with empty bodies, and only if FrameHud is called outside src/debug, so those lines still compile.

Limits

A reading trap first. An app drawing nothing still scores badly. Frames happen when something changes, so on a still screen the few that arrive come long after the deadline and count as janky — 97% on an idle screen here. The percentage answers how many of the frames this app drew were late, never whether the app is busy.

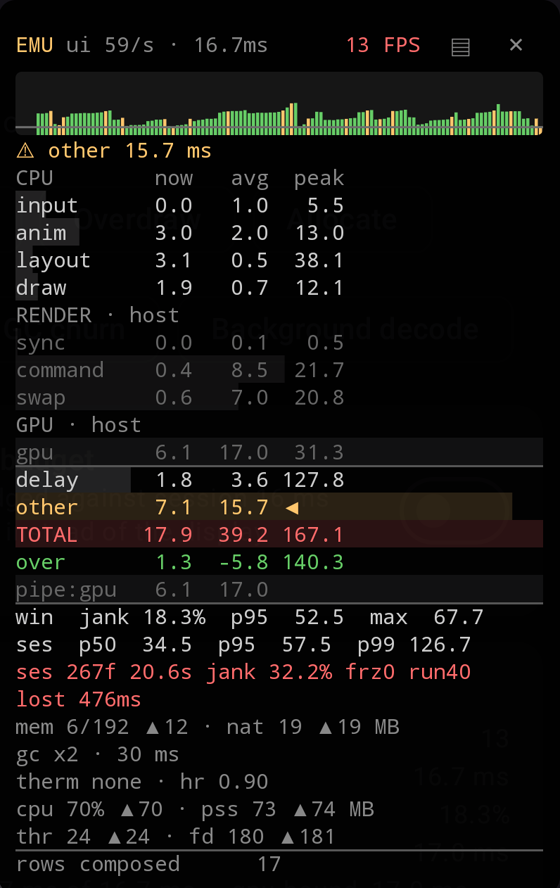

The panel on an emulator, host rows dimmed

One comparison not to make: a p95 from here against a p95 from Macrobenchmark. Different quantities, a whole frame against CPU duration, a manual pass against repeated iterations. The comparison doc covers where each tool belongs, JankStats included: it stands on the same FrameMetrics from the same API 24 and hands you a frame and a flag, with storage, aggregation and display left to write.

debugImplementation("com.timkrest:framehud:0.18.1")

The public API may change before 1.0; the changelog says what to write instead of whatever went away.

Which row is missing from this panel for you? I have candidates and no way to rank them from an S25 Ultra and a Redmi 9C.

Answers go in this thread.
